In the mechanical testing laboratory, static and dynamic tests are performed at room temperature as well as at elevated temperatures. We not only provide test results, but also offer consultation on sampling upon request. Comparisons with standard values, result interpretations, and further technical consulting services are also available.
Tensile tests at room temperature on round or flat specimens (EN ISO 6892-1), test method A (strain-rate-controlled) or B (stress-rate-controlled)
Tensile tests at elevated temperatures up to 900°C (EN ISO 6892-2)
Compression tests (DIN 50 106) at room temperature and elevated temperatures
Brinell (ON EN ISO 6506-1)
Vickers (ON EN ISO 6507-1)
Rockwell(ON EN ISO 6508-1)
Rotating bending fatigue tests (DIN 50113) at room temperature
Uniaxial fatigue tests (DIN 50100) at room temperature and elevated temperatures
Penetration wedge tests (VDG standard P340) on grey cast iron GJL
Rotating bending fatigue tests (DIN 50113) at elevated temperatures
Hysteresis testing uniaxial under tension/compression load up to 1000 cycles, stress- or strain-controlled
High resolution tensile or compression tests using strain gages for elongation measurement
Processing, testing and evaluation of templugs for the indirect measurement of temperature on engine parts

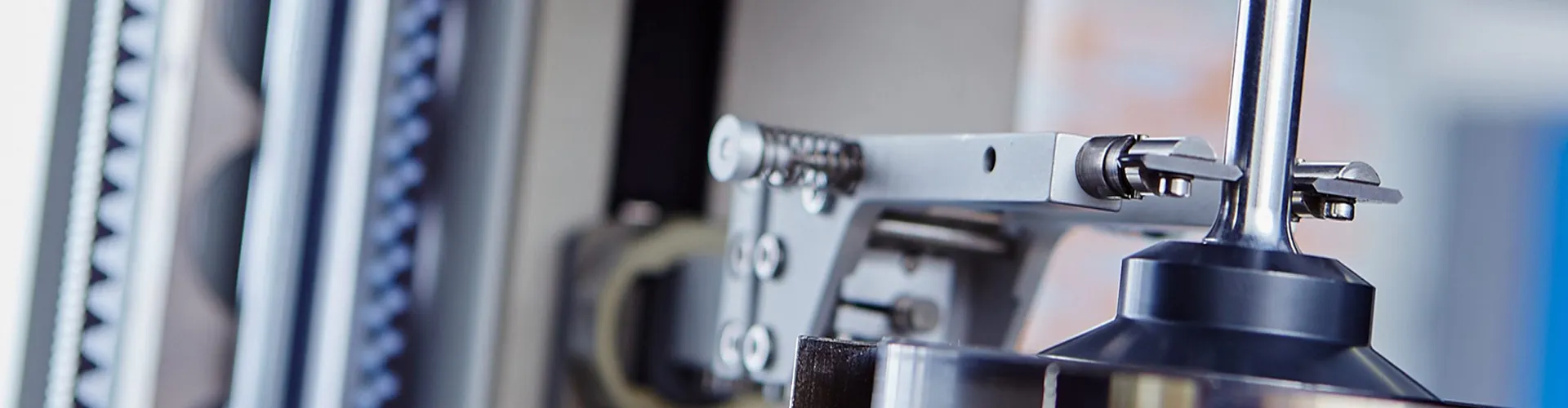

Universal testing machine for tensile-, compression-, bending- or component tests, max. load 250 kN at room temperature
Universal testing machine for tensile tests, max. load 100 kN at elevated temperatures up to 900°C or with climate chamber at temperatures between -80°C und 250°C
Universal testing machine for tensile- or compression tests, max. load 50 kN at elevated temperatures up to 750°C using a laser extensometer for non-contact measurement of strain or compression on small test specimens
Electrodynamic universal testing machine designed for dynamic and static testing on a wide range of materials and components, max. load 10 kN, max. dynamic stroke +/-30 mm, max. frequency 100 Hz. Testing temperature: – 80°C to +350°C
High frequency resonance fatigue testing machines (20 kN, 30 kN and 100 kN) with equipment for testing at elevated temperatures up to 600°C
Rotating bending fatigue testing machines 30 Nm with equipment for testing at elevated temperatures up to 500°C
Hardness testing machines for Brinell, Vickers and Rockwell methods
